NT60, NT78 & RP800 Rock Pickers
Highline Manufacturing are industry-leading in rock removal equipment.
Product Range
Rock Solid Performance

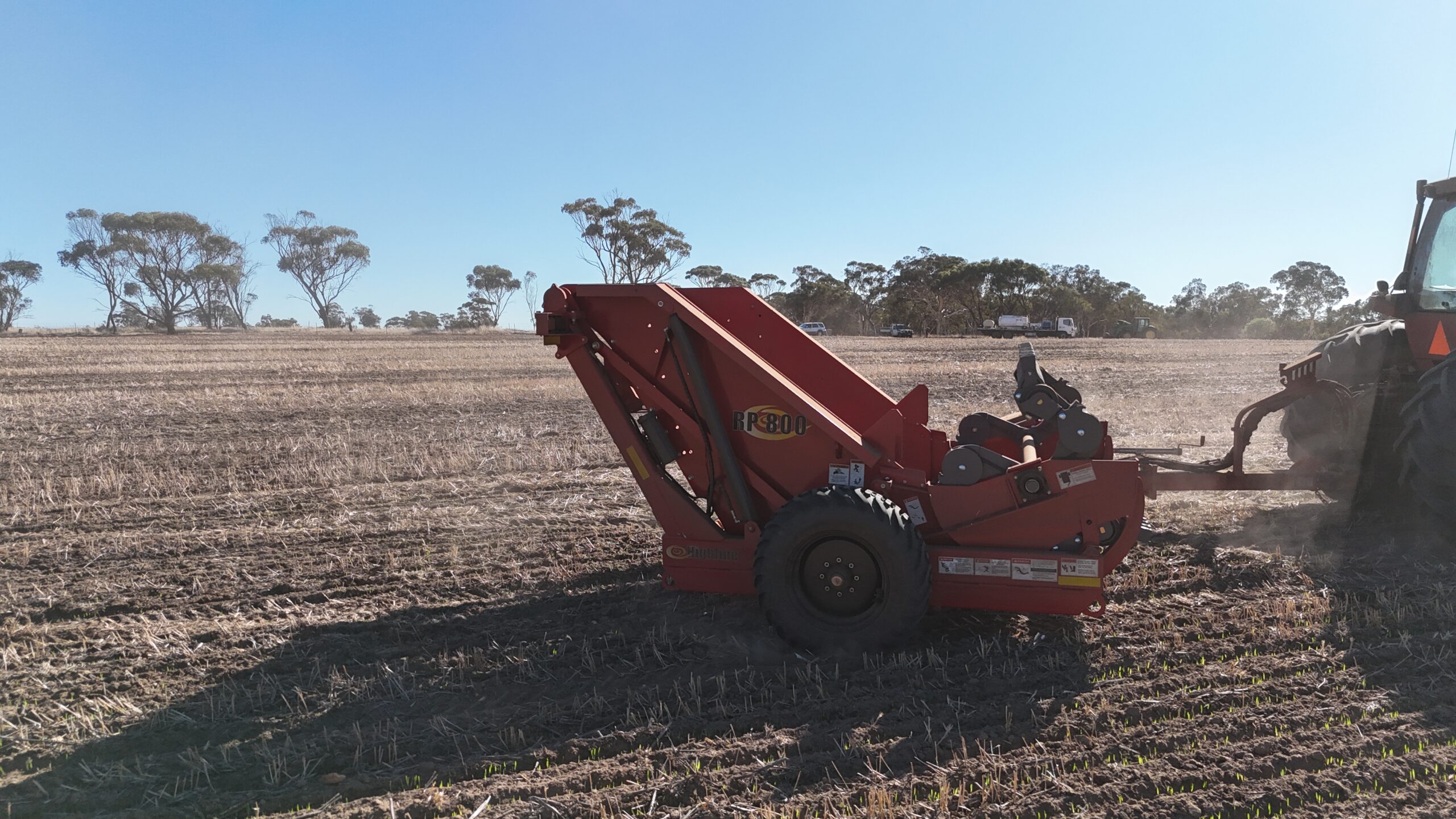

The Highline Rock Picker is available in three capacity options and can pick rocks up to 61cm in diameter.
Every Highline Rock Picker features a unique box frame construction designed with minimal moving parts and extremely durable components, ensuring long service life in demanding conditions.
4.13m3 capacity
2.56m3 capacity
1.97m3 capacity
Key Features
Fast & Efficient Rock Removal
The Highline Rock Picker range is equipped with industry-exclusive features for fast, efficient and reliable rock removal.
Designed for durability and ease of operation, every Highline Rock Picker is hydraulically driven to deliver smooth performance and dependable operation in demanding conditions.
The Rock Picker’s hydraulically driven gearbox ensures large oil bathed gears set the reel at the precisely desired speed.
The hydraulic drive also provides flexibility and simplicity when operating the reel.

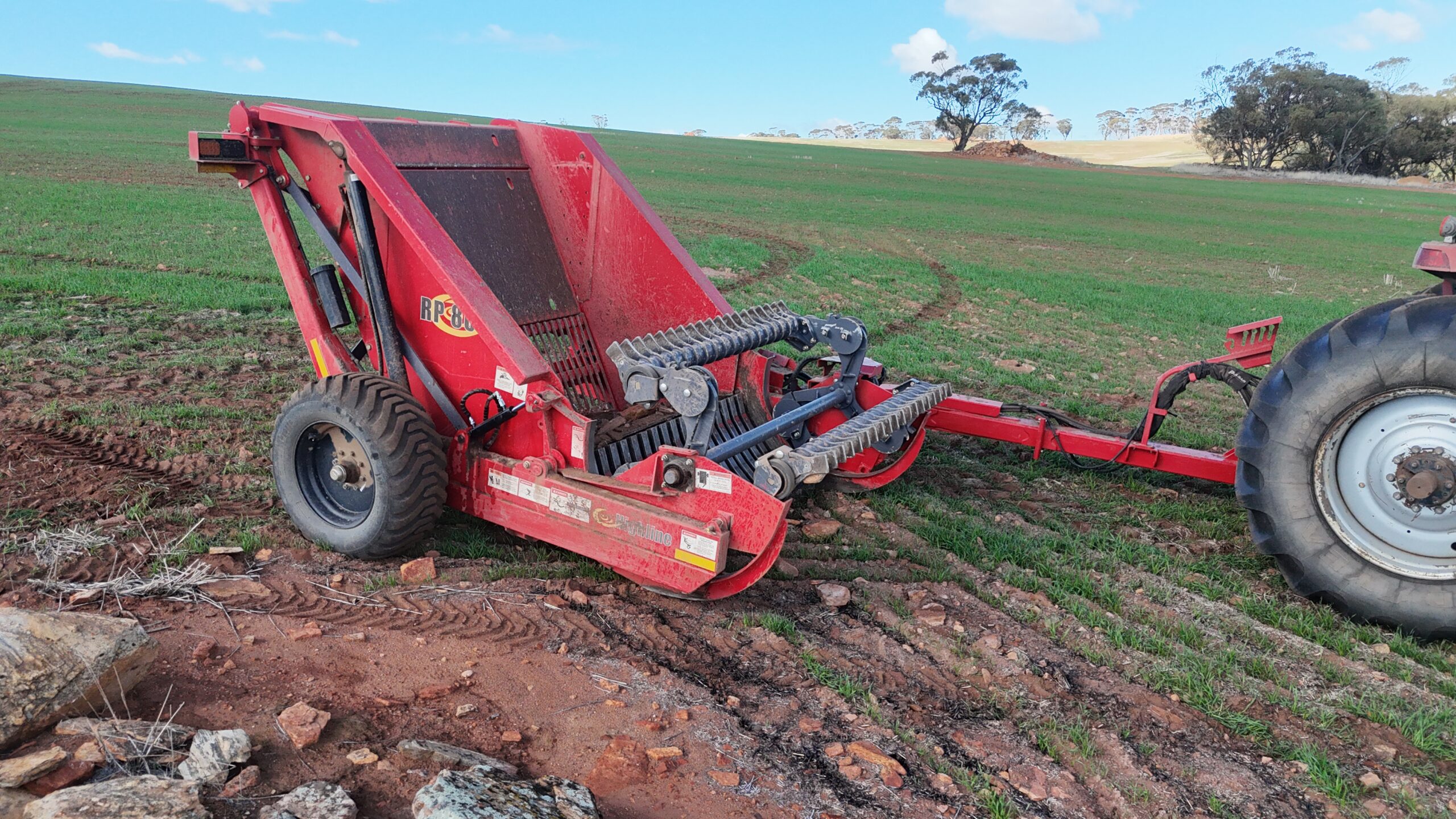

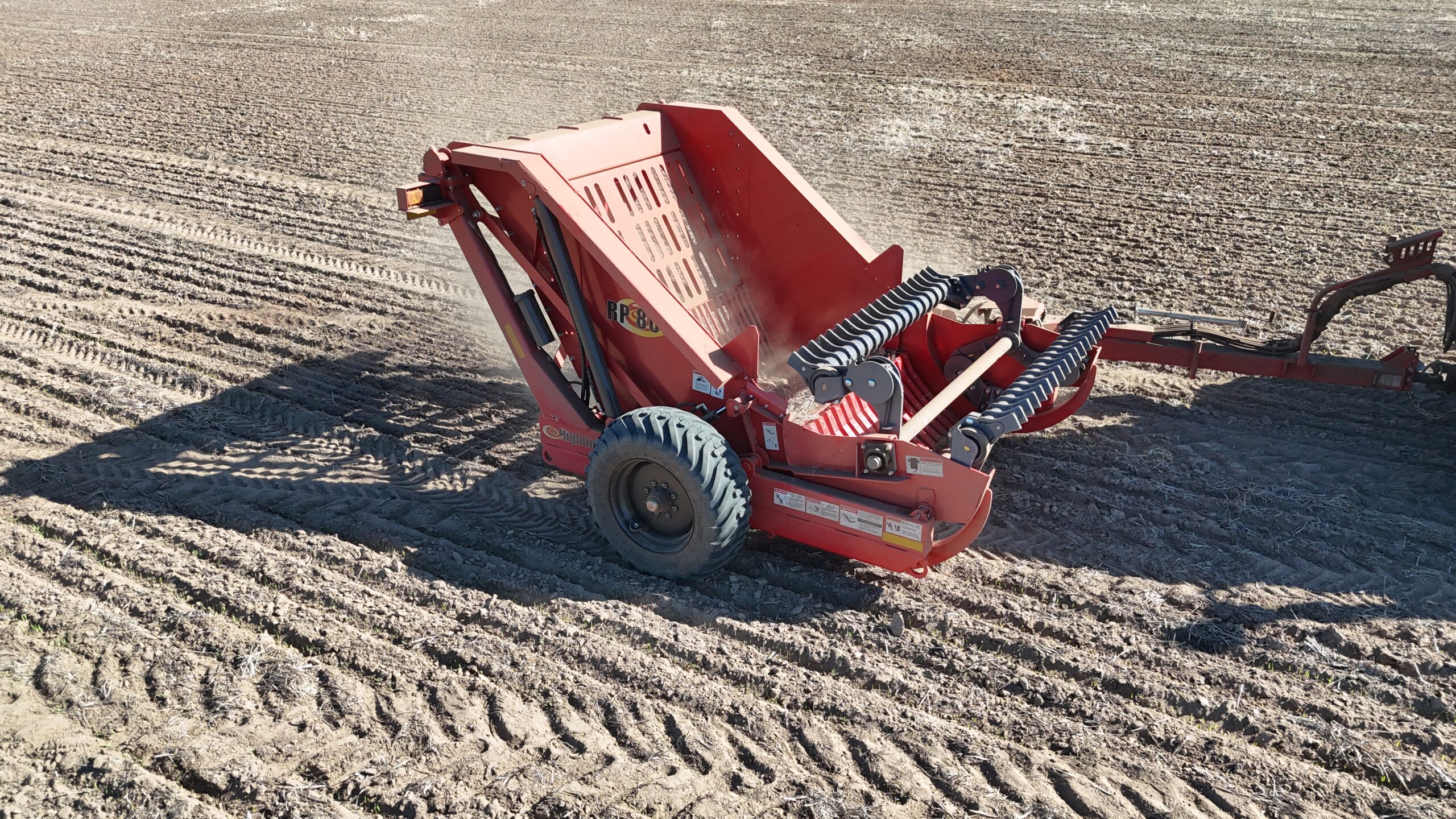

The picking action is guided by bogie wheels which allows the reel to travel parallel to the ground surface, lifting and pulling the rocks towards the apron, rather than pushing down on the rocks.
The guided reel delivers the rocks to the centre of the bucket, and follows the same contour as the apron.
Exclusive to the industry, a coil spring provides uniform loading over the reel operating range, combined with compact mounting to protect from damage.
The springs are replaceable with a simple threaded bolt to apply or remove spring tension.
The Picker tines are hard surfaced on both the top and bottom leading edges for maximum durability.

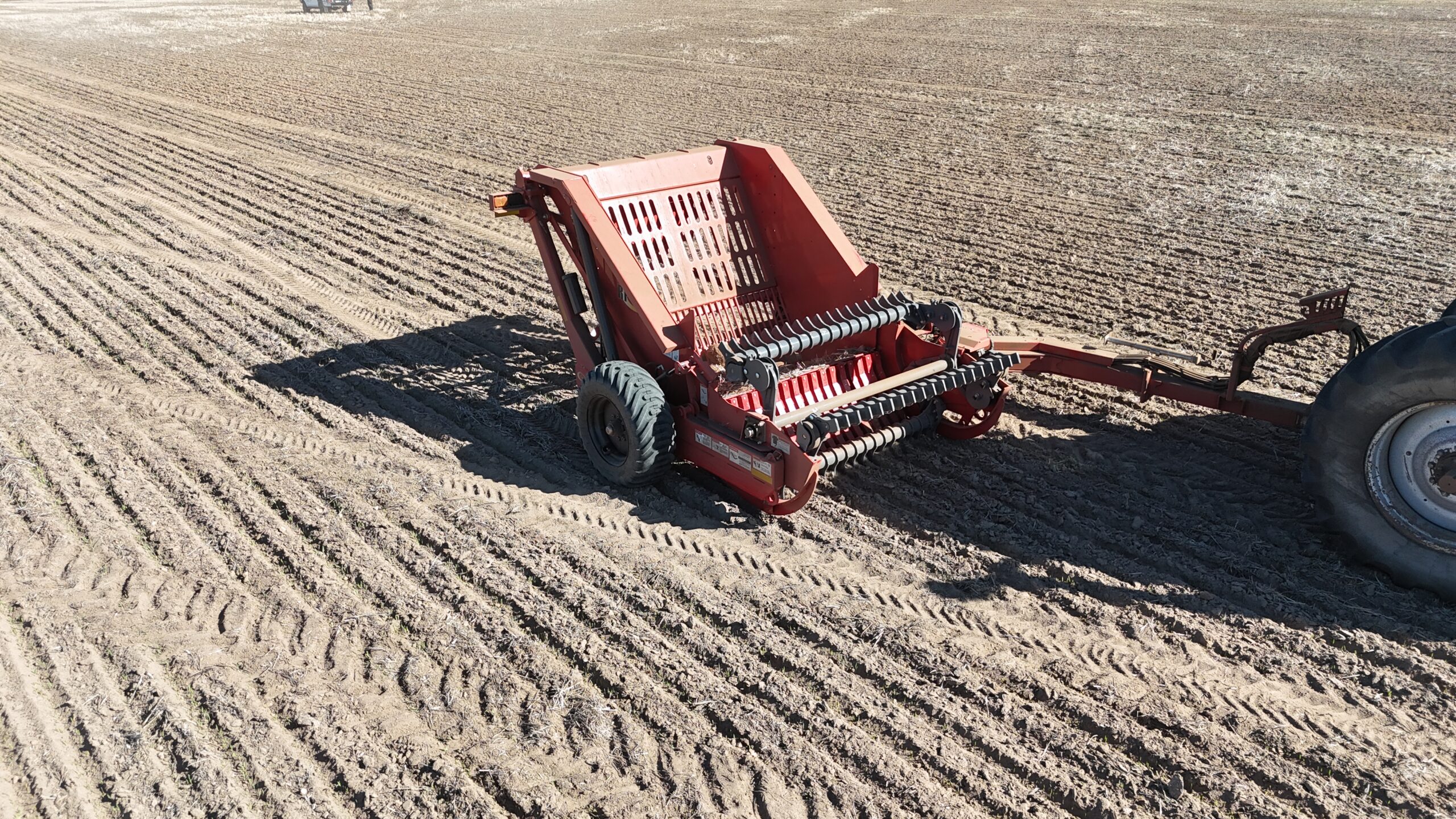

Tines follow the reel which aids in lifting the rocks whilst allowing dirt to fall through.
The RP800 features fully replaceable tines, tine tips and top plates, making maintenance faster, easier and more cost-effective.
Designed for maximum serviceability, the replaceable wear system helps reduce downtime and keep your rock picker working for longer.
Exclusive Feature
High-Lift Design
The Highline Rock Picker range features an exclusive high-lift design which enables rocks to be unloaded directly into trailers or stacked into higher, more compact piles.
The NT60 and NT78 provide a dump height of up to 2.13m, while the RP800 features a patented adjustable dump height of up to 2.90 m for even greater loading flexibility.
Exclusive Feature
Advanced Hitch Design
The Highline Rock Picker range features advanced hitch designs that maximise operator visibility, picking performance and transport convenience.

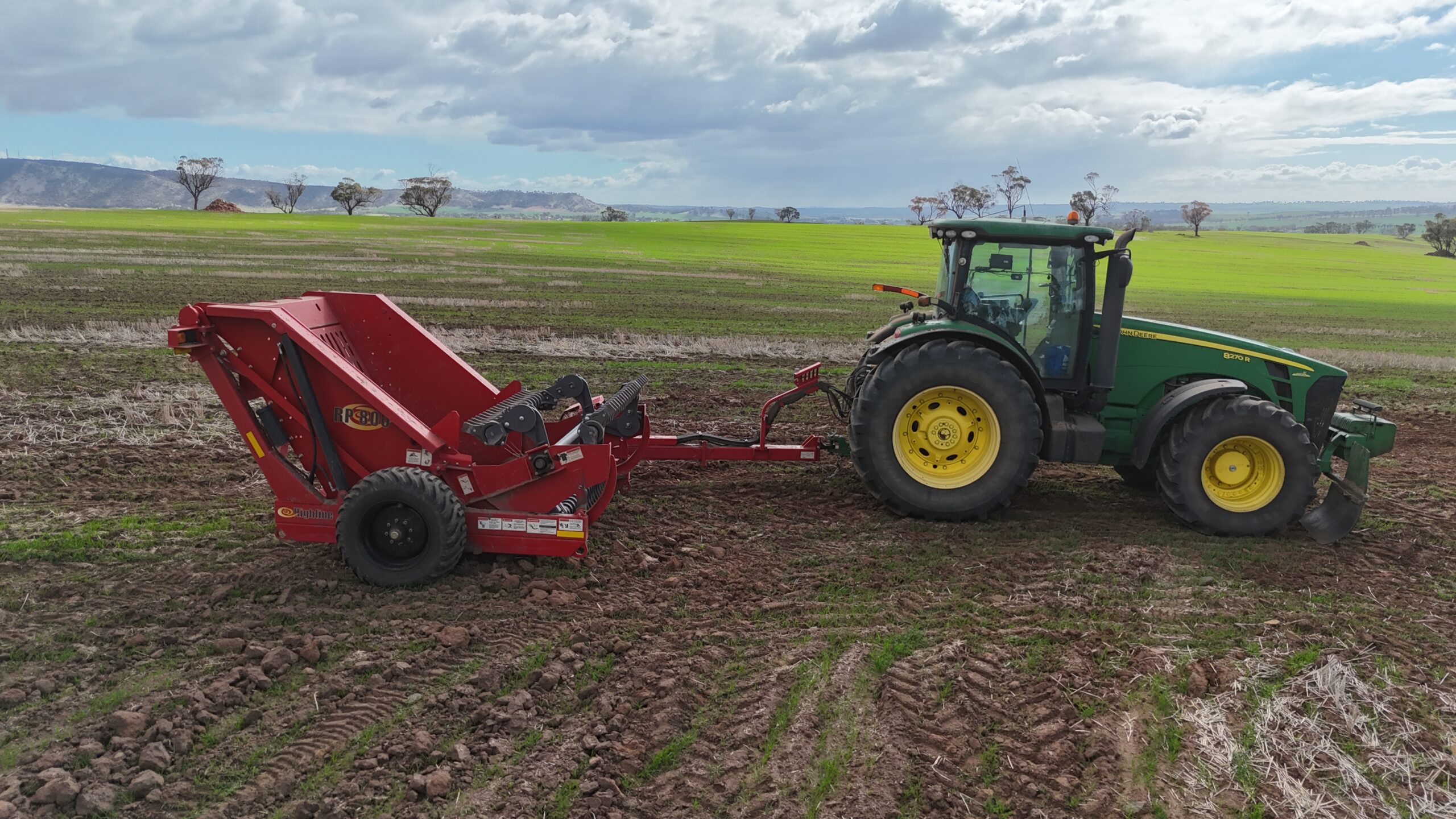

The NT60 and NT78 feature a two-position self-locking hitch that moves the entire picking width outside the tractor tracks, giving the operator a clear view while picking. For transport, the rock picker is positioned directly behind the tractor, where the self-locking hitch automatically engages for safe and convenient road travel.
The RP800 features a hydraulically positioned hitch that also places the entire picking width outside the tractor tracks while providing an unobstructed view ahead of the reel. For transport, the hitch hydraulically centres the rock picker behind the tractor for narrow road travel.
